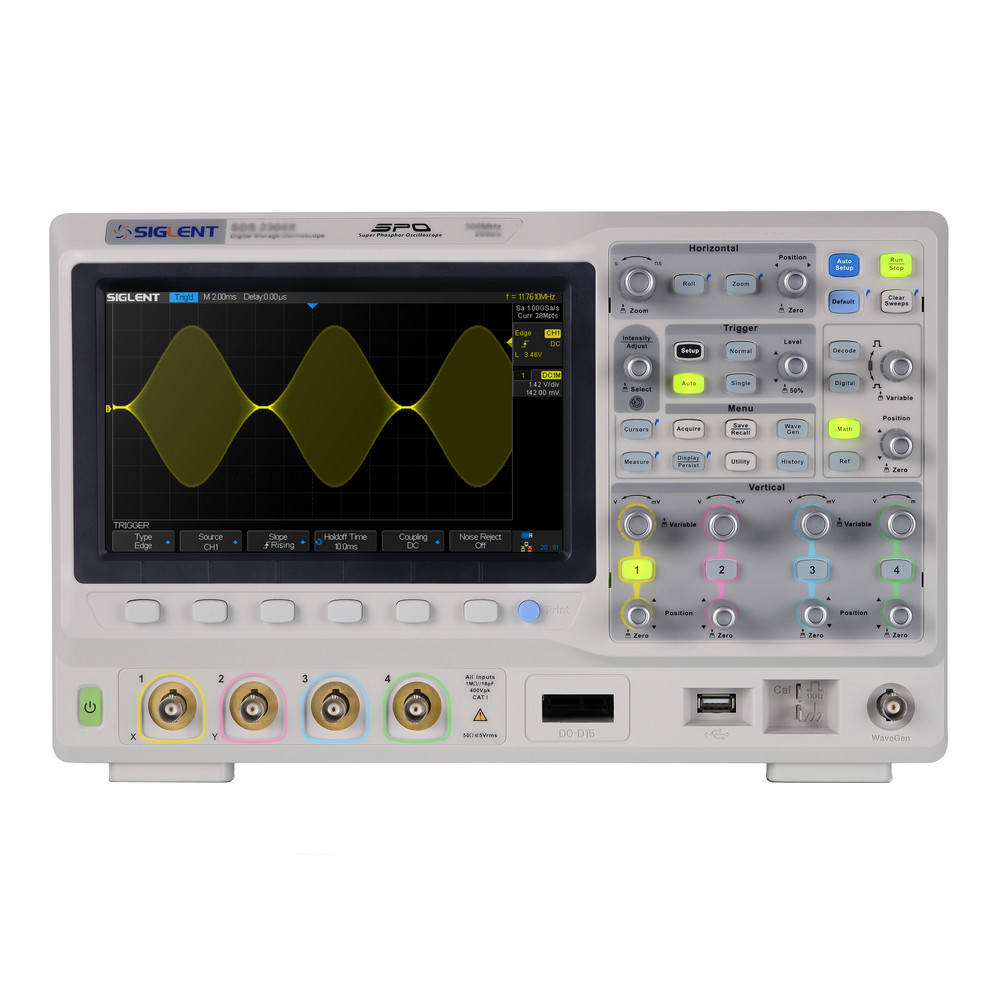

Siglent SDS2304X 300MHz Super Phosphor Oscilloscope

Regular Price:
$2,815.00
Promotional Price:
$1,970.50

*Please Note: This item is shipped from a seperate warehouse and could be shipped in a seperate package/shipment.

(the image shown is for ilustration only and the actual item may vary from the image shown.)

3 Year limited warranty

SIGLENT’s SDS22304X Super Phosphor Oscilloscope with a bandwidth of 300 MHz and features a maximum sample rate of 2 GSa/s, and a maximum record length of 140 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS2304X employs a new generation of SPO technology. It has an innovative digital trigger system with high sensitivity and low jitter, and a maximum waveform capture rate of 140,000 wfm/s (normal mode), up to 500,000 wfm/s (sequence mode). It also employs the common 256-level intensity grading display function but also a color temperature display mode. The trigger system supports multiple powerful triggering modes including serial bus triggering, History waveform recording and sequence acquisition allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a built-in 25 MHz arbitrary waveform generator, 16 digital channels (MSO), as well as serial decoding are also features of the SDS2304X.

Features

300 MHz
Real-time sampling rate up to 2 GSa/s

Waveform capture rate up to 140,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
Supports 256-level intensity grading and color temperature display
Record length up to 140 Mpts
Digital trigger system

Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported)
Serial bus triggering and decoder, supports protocols IIC, SPI, UART, RS232, CAN and LIN (Optional)
Low background noise, supports 1 mV/div to 10 V/div voltage scales
10 types of one-button shortcuts, including Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweeps, Zoom and Print
Segmented acquisition (Sequence) mode divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user. The resulting acquisition has a very small dead time segment.
History waveform record (History) function, the maximumr ecorded waveform length is 80,000 frames
Automatic measurement function on 37 parameters, supports statistics, Gating measurements, Math measurements, History measurements and Ref measurements
Math function (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
High Speed hardware based Pass/ Fail function
16 Digital channels (MSO option), Maximum waveform capture rate up to 500 MSa/s, Record length up to 140 Mpt/CH
25 MHz function/arbitrary waveform generator, built-in 10 types of waveforms (option)
Large 8 inch TFT-LCD display with 800 * 480 resolution
Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass/Fail, Trigger Out
Supports SCPI remote control commands
Supports Multi-language display and embedded online Help

Characteristics

8 inch TFT-LCD Display and 10 One-button Menus

8-inch TFT-LCD display with 800 * 480 resolution
Most commonly used functions are accessible using 10 different one-button operation keys: Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweeps, Zoom and Print

Waveform Capture Rate up to 500,000 wfm/s

With a waveform capture rate of up to 500,000 wfm/s (sequence mode), the oscilloscope can easily capture the unusual or small probability events

Record Length of up to 140 Mpts

Using hardware-based Zoom technique and a record length of up to 140 Mpts, users are able to use a higher sampling rate to capture more of the signal, and then quickly zoom in to focus on the area of interest

256-level Intensity Grading and Color Temperature Display

SPO display technology is the result of high refresh rate and multi-frame superimposition. In the unit of time, the higher the probability of a pixel waveform appears, the brighter the pixel.

The degree of warm or cool of color suggests the probability of the appearing of waveform. The warmer the color, the higher the probability.

Variety of Trigger Functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, IIC, SPI, UART/RS232, LIN and CAN

History Mode

History function can record up to 80,000 frames of waveforms.
The recording is carried out automatically, so that the customer can play back the history waveforms at any time to observe unusual events, and locate the source quickly through the cursors or measurements.
Located on the keyboard Panel, this function is easily accessible

Sequence Mode

Segmented memory collection will store the waveform into multiple (up to 80,000) memory segments and each segment will store a triggered waveform, as well the dead time information. The dead time between segments can be as small as 2μs. All the segments can be played back using History function.

Comprehensive Statistical Functions

Parametric statistical functions to display 5 parameters for any set of measurements: current, mean, minimum value, maximum value, and standard deviation. The measurement count is also displayed. The maximum number of measurements that can be run and simultaneously analyzed statistically is five. Supports Gating measurements, Math measurement, History measurement and Ref measurement.

Advanced Math Function

In addition to the traditional (+, -, X, /) operations, FFT, integration, differential, and square root operations are supported. The integration operation supports gating, which uses cursors to define the domain of integration.

Eres Mode

Eres mode can improve the SNR effectively, without the dependence on the periodicity of signal and stable triggering

Hardware-Based High Speed Pass/Fail Function

Hardware-based Pass/Fail function performs up to 140,000 Pass / Fail decisions each second.
With easy-to-generate user-defined test templates, the SDS2000X compares the current measured trace to the template mask trace, making it suitable for long-term signal monitoring or automated testing.

Serial Bus Decoding Function (Optional)

Displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in table form.

Built-in 25MHz Function/Arbitrary Waveform Generator (Optional)

10 built-in waveforms plus 4 ARBs. The arbitrary waveforms can be accessed and edited by the EasyWave PC software

Complete Connectivity

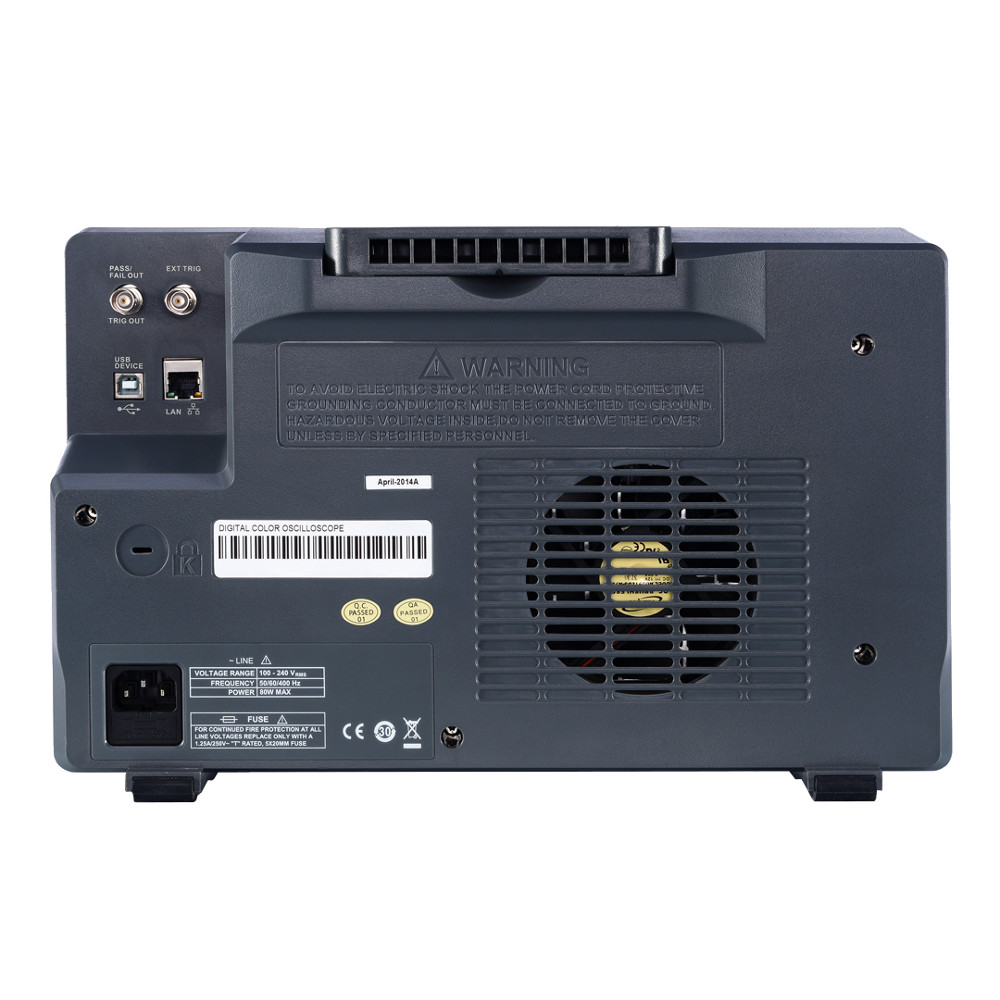

USB Host, USB Device (USBTMC), LAN (VXI-11), Pass/Fail, Trigger Out

Specifications

Acquire System
Sampling Rate	2GSa/s (single-channel^[1]), 1GSa/s (dual-channel)
Memory Depth	140Mpts (single-channel), 70Mpts (dual-channel)
Peak Detect	1ns
Average	Averages: 4, 16, 32, 64, 128, 256, 512, 1024
Eres	Enhance bits: 0.5, 1, 1.5, 2., 2.5, 3 selectable
Interpolation	Sinx/x, Linear

Input
Channel	4 + EXT
Coupling	DC, AC, GND
Impedance	DC: (1MΩ±2%) \|\| (22pF ±3pF) 50Ω: 50Ω±2%
Max. Input voltage	1MΩ ≤400Vpk (DC + Peak AC <=10kHz) 50Ω ≤5Vrms
CH to CH Isolation	DC~Max BW >35dB
Probe Attenuation	0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X, 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X

Horizontal System
Time Scale	1.0ns/div ~ 50s/div
Channel Skew	<100ps
Waveform Capture Rate	Up to 140,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
Intensity grading	256-level
Display Format	Y-T, X-Y, Roll
Time base Accuracy	±25ppm
Roll Mode	50ms/div ~ 50s/div (1-2-5 Step)

Vertical System
Bandwidth (-3dB)	300 MHz
Vertical Resolution	8 bit
Vertical Range	8 divisions
Vertical Scale (Probe 1X)	1mV/div - 10V/div (1-2-5 step)
Offset Range (Probe 1X)	1mV/div ~ 100mV/div: ±1V 102mV/div ~ 1V/div: ±10V 1.02V/div ~ 10V/div: ±100V
Bandwidth Limit	20MHz ±40%
Bandwidth Flatness	DC ~ 10%(BW): ±1dB 10% ~ 50%(BW): ±2dB 50% ~ 100%(BW): +2dB/-3dB
Low Frequency Response (AC Coupling -3dB)	≤10Hz (at input BNC)
Noise	stdev ≤ 0.2 div (< 2mV/div) stdev ≤ 0.5 div (≥ 2mV/div)
DC Gain Accuracy	5mV/div ~10V/div: ≤3.0% ≤2mV/div: ≤4.0%
Offset Accuracy	≥2mV/div: ±(1%offset+1.5%8div+2mV) <2mV/div: ±(1% offset +1.5%8div+1mV)
Rise Time ^[1]	(Typ.)<5.0ns (SDS2074X)
Overshoot (500ps Rise Edge)	<10%

Trigger System
Mode	Auto, Normal, Single
Level	Internal: ±4.5div from the center of the screen EXT: ±0.6V EXT/5: ±3V
Holdoff Range	100ns ~ 1.5s
Coupling	AC, DC, LFRJ, HFRJ, Noise RJ (CH1~CH4)
Coupling Frequency Response (CH1~CH4)^[2]	DC: Passes all components of the signal AC: Blocks DC components and attenuates signals below 8Hz LFRJ: Attenuates the frequency components below 900kHz HFRJ: Attenuates the frequency components above 500kHz
Coupling Frequency Response (EXT) ^[2]	DC: Passes all components of the signal AC: Blocks DC components and attenuates signals below 8Hz LFRJ: Attenuates the frequency components below 400kHz HFRJ: Attenuates the frequency components above 1MHz
Accuracy^[2]	CH1 ~ CH4: ±0.2div EXT: ±0.3div
Sensitivity	CH1~ CH4: 0.6div EXT: 200mVpp (DC~ 10MHz) 300mVpp (10MHz~ BW) EXT/5: 1Vpp (DC~ 10MHz) 1.5Vpp (10MHz~ BW)
Jitter	<100ps (CH1~ CH4)
Displacement	Pre-Trigger: 0 ~ 100% memory Delay-Trigger: 0 ~ 2,000 div
Edge Trigger
Slope	Rising, Falling, Rising&Falling
Source	CH1~CH4/EXT/(EXT/5)/AC Line
Slope Trigger
Slope	Rising, Falling
Limit Range	<, >, < >, > <
Source	CH1 ~ CH4
Time Range	2ns ~ 4.2s
Resolution	1ns
Pulse Width Trigger
Polarity	+wid , -wid
Limit Range	<, >, < >, > <
Source	CH1~CH4
Pulse Width Range	2ns ~ 4.2s
Resolution	1ns
Video Trigger
Signal Standard	NTSC, PAL, 720p/50, 720p/60, 1080p/50, 1080p/60, 1080i/50, 1080i/60, Custom
Source	CH1~CH4
Sync	Any, Select
Trigger Condition	Line, Field
Window Trigger
Window Type	Absolute, Relative
Source	CH1~CH4
Interval Trigger
Slope	Rising, Falling
Limit Range	<, >, < >, > <
Source	CH1~CH4
Time Range	2ns ~ 4.2s
Resolution	1ns
Dropout Trigger
Timeout Type	Edge, State
Source	CH1~CH4
Slope	Rising, Falling
Time Range	2ns ~ 4.2s
Resolution	1ns
Runt Trigger
Polarity	+wid , -wid
Limit Range	<, >, < >, > <
Source	CH1~CH4
Time Range	2ns ~ 4.2s
Resolution	1ns
Pattern Trigger
Pattern Setting	Invalid, Low, High
Logic	AND, OR, NAND, NOR
Source	CH1~CH4
Limit Range	<, >, < >, > <
Time Range	2ns ~ 4.2s
Resolution	1ns

Serial Trigger
ITC Trigger
Condition	Start, Stop, Restart, No Ack, EEPROM, Address&Data, Data Length
Source (SDA/SCL)	CH1~CH4
Data format	Hex
Limit Range	EEPROM: =, >, <
Data Length	EEPROM: 1byte Address&Data: 1~2byte Data Length: 1~12byte
R/W bit	Address&Data: Read, Write, Do not care
SPI Trigger
Condition	Data
Source (CS/CLK/Data)	CH1~CH4
Data format	Binary
Data Length	4 ~ 96 bit
Bit Value	0, 1, X
Bit Order	LSB, MSB
UART/RS232 Trigger
Condition	Start, Stop, Data, Parity Error
Source (RX/TX)	CH1~CH4
Data format	Hex
Limit Range	=, >, <
Data Length	1 byte
Data Width	5 bit, 6 bit, 7 bit, 8 bit
Parity Check	None, Odd, Even
Stop Bit	1 bit, 1.5 bit, 2 bit
Idle Level	High, Low
Baud Rate (Selectable)	600/1200/2400/4800/9600/19200/38400/57600/115200 bit/s
Baud Rate (Custom)	300bit/s~334000bit/s
CAN Trigger
Type	All, Remote, ID, ID+Data, Error
Source	CH1~CH4
ID	STD (11bit), EXT(29bit)
Data format	Hex
Data Length	1~2byte
Baud Rate (Selectable)	5k/10k/20k/50k/100k/125k/250k/500k/800k/1M bit/s
Baud Rate (Custom)	5kbit/s~1Mbit/s
LIN Trigger
Type	Break, Frame ID, ID+Data, Error
Source	CH1~CH4
ID	1byte
Data format	Hex
Data Length	1~2byte
Baud Rate (Selectable)	600/1200/2400/4800/9600/19200 bit/s
Baud Rate (Custom)	300bit/s~20kbit/s

Serial Decoder (Optional)
No. of Decoder	2
IIC Decoder
Signal	SCL, SDA
Address	7bit, 10bit
Threshold	-4.5~4.5div
List	1~7 Lines
SPI Decoder
Signal	CLK, MISO, MOSI, CS
Edge Select	Rising, Falling
Idle Level	Low, High
Bit Order	MSB, LSB
Threshold	-4.5~4.5 div
List	1 ~ 7 lines
UART/ RS232 Decoder
Signal	RX, TX
Data Width	5 bit, 6 bit, 7 bit, 8 bit
Parity Check	None, Odd, Even
Stop Bit	1 bit, 1.5 bit, 2 bit
Idle Level	Low, High
Threshold	-4.5~4.5 div
List	1 ~ 7 lines
CAN Decoder
Signal	CAN_H, CAN_L
Source	CAN_H, CAN_L, CAN_H-CAN_L
Threshold	-4.5~4.5 div
List	1 ~ 7 lines
LIN Decoder
LIN Specification Package Revision	Ver1.3, Ver2.0
Threshold	-4.5 ~ 4.5 div
List	1 ~ 7 lines

Measurement
Source	CH1~CH4, Math, Ref, History
No. of Measurements	Display 5 measurements at the same time
Range	Screen, Gating

Measurement Parameters (37 Types)
Vertical (Voltage)	Vmax	Highest value in input waveform
	Vmin	Lowest value in input waveform
	Vpp	Difference between maximum and minimum data values
	Vamp	Difference between top and base in a bimodal signal, or between max and min in an unimodal signal
	Vtop	Value of most probable higher state in a bimodal waveform
	Vbase	Value of most probable lower state in a bimodal waveform
	Mean	Average of all data values
	Vmean	Average of data values in the first cycle
	stdev	Standard deviation of all data values
	Vstd	Standard deviation of all data values in the first cycle
	Vrms	Root mean square of all data values
	Crms	Root mean square of all data values in the first cycle
	FOV	Overshoot after a falling edge; (base-min)/Amplitude
	FPRE	Overshoot before a falling edge; (max-top)/Amplitude
	ROV	Overshoot after a rising edge; (max-top)/Amplitude
	RPRE	Overshoot before a rising edge; (base-min)/Amplitude
	Level@X	The voltage value of the trigger point
Horizontal (Time)	Period	Period for every cycle in waveform at the 50% level, and positive slope
	Freq	Frequency for every cycle in waveform at the 50% level, and positive slope
	+Wid	Width measured at 50% level and positive slope
	-Wid	Width measured at 50% level and negative slope
	Rise Time	Duration of rising edge from 10-90%
	Fall Time	Duration of falling edge from 90-10%
	Bwid	Time from the first rising edge to the last falling edge, or the first falling edge to the last rising edge at the 50% crossing
	+Dut	Ratio of positive width to period
	-Dut	Ratio of negative width to period
	Delay	Time from the trigger to the first transition at the 50% crossing
	Time@Level	Time from trigger of each transition at a specific level and slope
Delay	Phase	Calculate the phase difference between two edges
	FRR	Time between the first rising edges of the two channels
	FRF	Time from the first rising edge of channel A, to the first falling edge of channel B
	FFR	Time from the first falling edge of channel A, to the first rising edge of channel B
	FFF	Time from the first falling edge of channel A, to the first falling edge of channel B
	LRR	Time from the first rising edge of channel A, to the last rising edge of channel B
	LRF	Time from the first rising edge of channel A, to the last falling edge of channel B
	LFR	Time from the first falling edge of channel A, to the last rising edge of channel B
	LFF	Time from the first falling edge of channel A, to the last falling edge of channel B
Cursors	Manual : Time X1, X2, (X1-X2), (1/ΔT) Voltage Y1, Y2, (Y1-Y2 Track: Time X1, X2, (X1-X2)
Statistics	Current, Mean, Min, Max, Std-Dev, Count
Counter	±1Hz counter error

Math
Operation	+, -, *, /, FFT, d/dt, ∫dt, square root
FFT Window	Rectangular, Blackman, Hanning, Hamming
FFT Display	Full Screen, Split

Built-in Function/Arbitrary Waveform Generator (Optional)
Channel	1
Max. Output Frequency 25MHz
Sampling Rate 125 MSa/s
Frequency Resolution 1 μHz
Frequency Accuracy ±50 ppm
Vertical Resolution 14 bits
Amplitude Range	2mVpp ~ 3Vpp (into 50Ω) 4mVpp ~ 6Vpp (into HiZ)
Waveforms	Sine, Square, Ramp, Pulse, DC, Noise, Cardiac, Gaus Pulse, Exp Rise, Exp Fall, Arb
Output Impedance	50Ω±2%
Protection	Short-Circuit Protection
Sine
Frequency	1μHz ~ 25MHz
Offset Accuracy (100 kHz)	±(0.3dB* offset setting value +1mVpp)
Amplitude Flatness (Compare to 100 kHz, 5Vpp)	±0.3 dB
SFDR	DC ~ 1 MHz -60dBc 1 MHz ~ 5 MHz -55dBc 5 MHz ~ 25 MHz -50dBc
HD	DC-5 MHz -50dBc 5 MHz - 25MHz -45dBc
Square/Pulse
Frequency	1μHz ~ 10MHz
Duty Cycle	20% ~ 80%
Rise/Fall time	< 24 ns (10% ~ 90%)
Overshoot	< 3% (typical, 1KHz, 1Vpp)
Pulse Width	> 50ns
Jitter (Cycle to Cycle)	< 500ps + 10ppm
Ramp
Frequency	1μHz ~ 300kHz
Linearity (Typical)	< 0.1% of Pk-Pk (Typical, 1 kHz, 1 Vpp, 100% Symmetry)
Symmetry	0% ~ 100%
DC
Offset range	±1.5V (into 50Ω) ±3 V (into HiZ)
Accuracy	±(\|offset\|*1%+3 mV)
Noise
Bandwidth	>25MHz (-3dB)

Digital Channels
No. of Channels	16
Max. Sampling Rate	500MSa/s
Memory Depth	14Mpts/CH
Min. Detectable Pulse Width	4ns
Level Group	D0~D7,D8~D15
Level Range	-3V~3V
Logic Type	TTL, CMOS, LVCMOS3.3, LVCMOS2.5, custom
Skew[2]	D0~D15: ±1 sampling interval Digital to Analog: ± (1 sampling interval +1ns)

I/O
Standard	USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Pass/Fail	3.3V TTL Output

Display
Display Type	8-inch TFT LCD
Resolution	800×480
Color	24 bit
Contrast	500:1
Backlight	300nit
Range	8 x 14 divisions

Waveform Display
Type	Dot, Vector
Persistence Time	OFF, 1s, 5s, 10s, 30s, infinite
Color Display	Normal, Color
Screen Saver	1min, 5min, 10min, 30min, 1hour, OFF

Language
Language	Simplified Chinese, Traditional Chinese, English, French, Japanese, Korean, German, Russian, Italian, Portuguese

Environments
Temperature Operating:	10°C ~ 40°C
Non-operating:	-20°C ~ 60°C
Humidity Operating:	85%RH, 40°C , 24 hours
Non-operating:	85%RH, 65°C , 24 hours
Altitude Operating:	≤3,000m
Non-operating:	≤15,266m
Electromagnetic Compatibility	2004/108/EC Execution Standard EN 61326-1:2006 EN 61000-3-2:2006 + A2:2009, EN 61000-3-3:2008
Safety	2006/95/EC Execution Standard EN 61010-1:2010/EN 61010-2-030:2010

Power Supply
Input Voltage & Frequency	100 ~ 240 Vrms 50/60Hz 100 ~ 120 Vrms 400Hz
Power	60W Max

Mechanical
Dimensions	Length* WidthHeight = 352mm128mm*224mm
Weight	N.W 3.4 Kg(2-ch); 3.6 Kg(4-ch) G.W 4.9 Kg(2-ch); 5.2 Kg(4-ch)

Note[1]	Single-channel: one channel in CH1/CH2 (or CH3/CH4) is ON and another is OFF Dual-channel: both channels in CH1/CH2 (or CH3/CH4) are ON
Note[2]	Typical Value refers to the tested value under specific conditions. It might vary with the ambient temperature or other conditions

SDS2000X Series Users Manual

Siglent SDS2304X 300MHz Super Phosphor Oscilloscope

Regular Price: $2,815.00 Promotional Price: $1,970.50

Specifications

Acquire System

Input

Horizontal System

Vertical System

Trigger System

Pulse Width Trigger

Video Trigger

Window Trigger

Interval Trigger

Dropout Trigger

Runt Trigger

Pattern Trigger

Serial Trigger

ITC Trigger

SPI Trigger

UART/RS232 Trigger

CAN Trigger

LIN Trigger

Serial Decoder (Optional)

IIC Decoder

SPI Decoder

UART/ RS232 Decoder

CAN Decoder

LIN Decoder

Measurement

Measurement Parameters (37 Types)

Math

Built-in Function/Arbitrary Waveform Generator (Optional)

Sine

Square/Pulse

Ramp

DC

Noise

Digital Channels

I/O

Display

Waveform Display

Language

Environments

Power Supply

Mechanical

Regular Price:
$2,815.00
Promotional Price:
$1,970.50

Siglent SDS2304X 300MHz 4 Ch Super Phosphor Oscilloscope
