SDS2002X-E 2 Channel 200 MHz Super Phosphor Oscilloscope

200 MHz Bandwidth
2 GSa/s Real-Time Sampling Rate
28 MPts Waveform Memory
500 uV/div Sensitivity
Maximum waveform capture rate: 100,000 frames / second (Standard mode), 400,000 frames / sec (Sequence mode)
Serial bus decode & trigger: standard
Digital trigger provides low jitter
Intensity-Graded display / Color-Temperature display mode
Video triggering / HDTV
Cursors
Measurement functions
USB and LAN interfaces
7″ (diagonal) display
Sequence trigger mode
History function
Secure erase feature
Optional MSO capability
Bode Plot function (Requires SIGLENT SDG X or SAG1021 function generator)
Optional Wi-Fi dongle
Web-based browser remote control interface
Search and Navigate keys
Weight 12 lbs
Dimensions 17 × 10 × 15 in

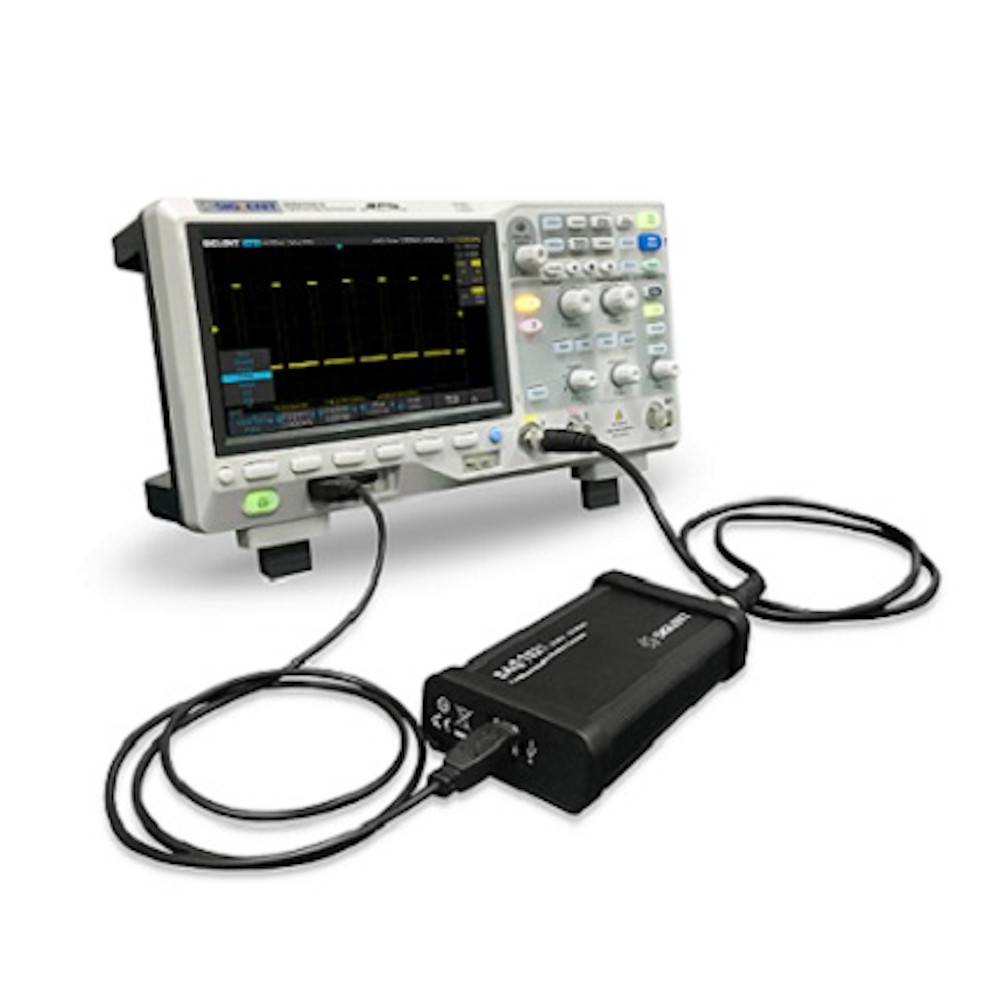

Photos show optional SAG1021 and laptop PC (not included).

The Siglent SDS2002X-E oscilloscopes is a 2-channel higher performance version of the Siglent SDS1202X-E model. The bandwidths is 200 MHz with a sampling rate of up to 2 GSa/s. With the faster sample rates and record lengths up to 28 MPts, the SDS2002X-E allows for excellent signal fidelity and recording / analyzing signals up to 350 MHz (SDS2352X-E).

Other features include AWG (optional SAG1021) and MSO (requires optional SLA1016 Logic Probe and SLA2000X-E-16LA Firmware Key).

Bode Plot capability is available using the optional SAG1021 generator or any Siglent SDG-series of function generator.

Sensitivity is rated at 500 uV/div – 10 V/div.

With its dual-mode display allowing for intensity-grading or color-‘temperature’ display mode, the SDS2002X-E oscilloscope represents one of the most powerful sub-$1000 oscilloscopes available today.

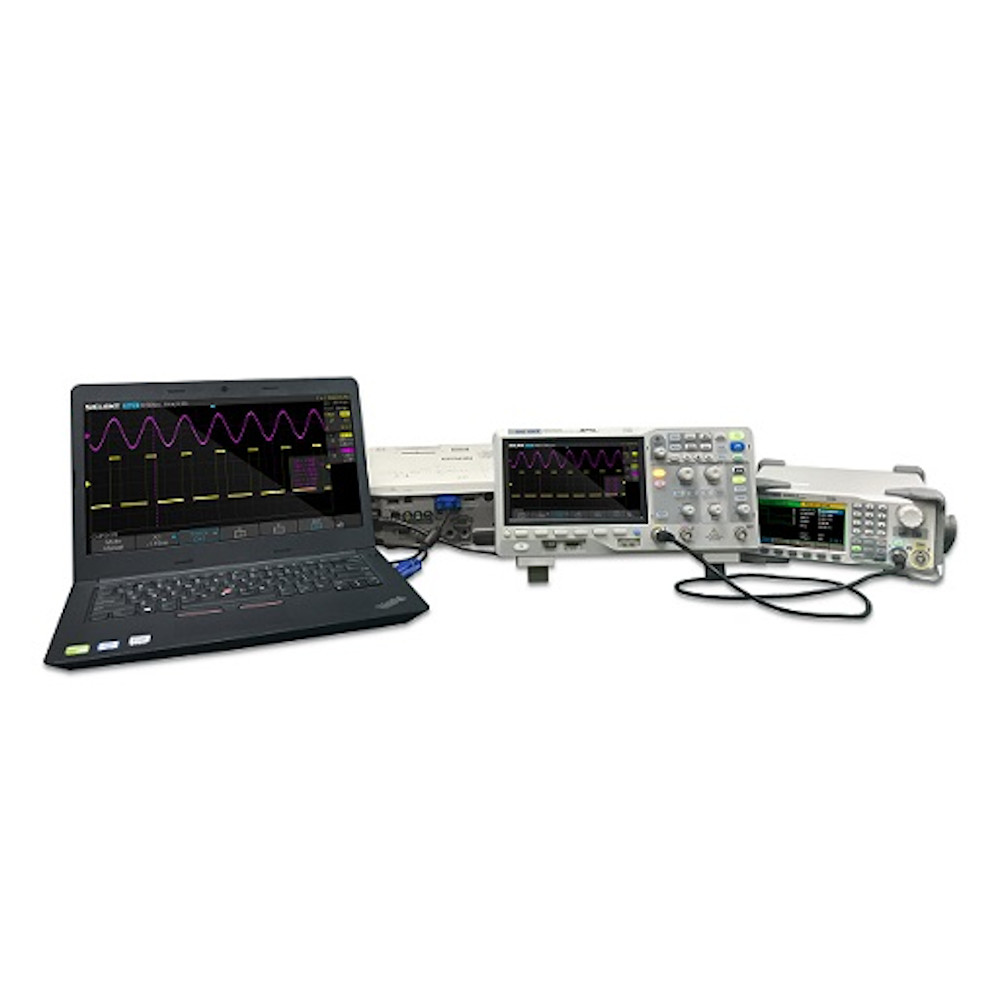

Photos show optional SAG1021 and laptop PC/router (not included).
