Stepper Motor Driver with 5 Amp Max Output and 20-60 Volt DC Input

Item no. CW250

Stepper Motor Driver with 5 Amp Max Output and 20-60 Volt DC Input

Item no. CW250
$42.00
45 In stock

Stepper Motor Driver 5 Amp Max Output and 20-60 Volt DC Input

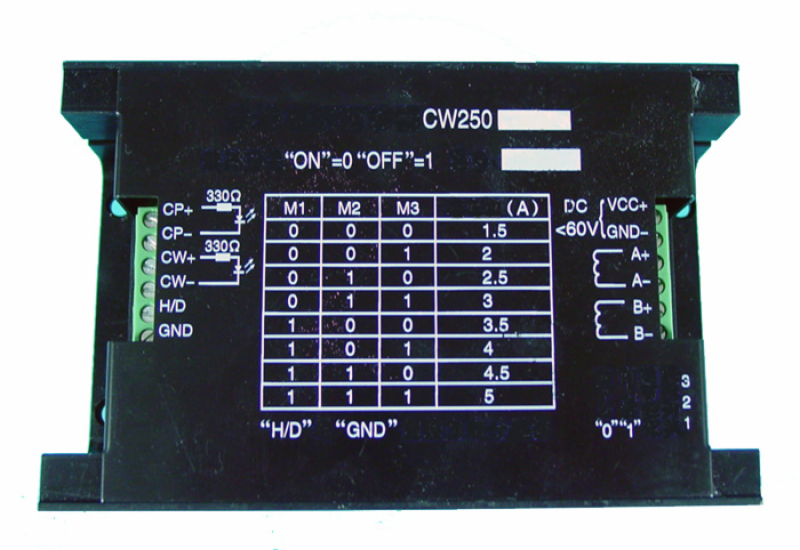

The CW250 is a two phase microstepping stepper motor driver equipped with both bi-polar and unipolar motors.  This stepper motor driver has a 32-bit DSP processor, is low nice and vibration, and has micro-step low temperature rise technology which can be set  to 51200 steps/rev.  All of these quality greatly improves the long-term quality of life for the stepper motor.    This stepper motor driver can excellently drive any of the Circuit Specialists stepper motors!

CW250 Specifications:

  • DC Power input type: 20V-60VDC
  • Output Current: 1.5A ~ 5A
  • Dimensions: 140mm x 94mm x 45mm
  • Weight: <500g
  • Working environment: 15 ~ 40°C, Humidity <90%
  • Control: Opto-isolated step / direction
  • MicroStep: 1 (200) and 1/8 (1600)



Parameter

Min

Typical

Max

Unit

Input Voltage(DC)

20

-

60

VDC

Output current

0

-

5.0

A

Pulse Signal Frequency

0

-

75

KHZ

Input Signal Current

7

10

16

mA




CW250 Typical Connection:

VCC

R

5V

0

12V

680Ω

24V

1.8KΩ



Check out the schematics of the mechanical specifications and the control signal connector for the CW250.

Note that if you're wiring up your driver to a controller, power supply, and stepper motor then you should check out this electrical schematic for wiring a stepper motor driver CW250.  Also, don't forget the pull down resistor on the Cp- and Cw- pins to ground.

If a stepper motor with 5 amp max output doesn't meet your needs, check out our other more stepper motor drivers.

To power your projects, check out Circuit Specialists's power supplies.

Spec Sheet
