Overview

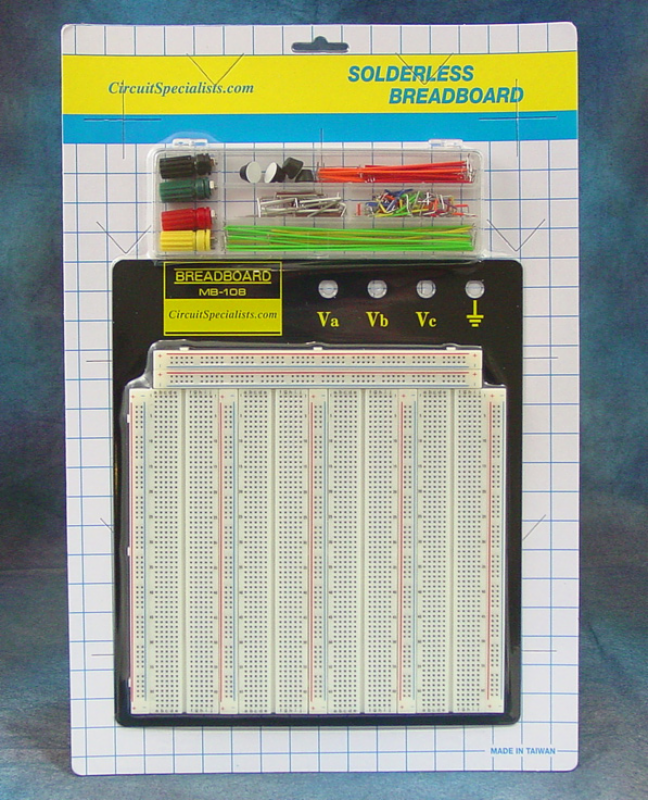

WB-108+J Solderless Prototyping Breadboard Kit with Integrated Groundplane
We've sharpened our pencils and done the math to reduce the cost of our breadboard kits.
With more than 3,200 separate contact points and color coordinated for easy component placement, our WB-108 prototyping breadboard is a great hands on way to learn circuit design. It features built in bus strips for power distribution and has an integrated aluminum ground plane. The WB-108+J Breadboard Kit is similar to the WB-102, however, it's much larger with an area of 7.25" x 7.5". The included wire jumpers are precut and preformed with stripped ends, so they are ready to use. The WB-108+J breadboard kit is a very popular item for hobbyists and students of all skill levels for prototyping and educational use.
WB-108+J Breadboard Kit Specifications
- Four (4) Terminal Strips with a total of 2520 contact points
- Seven (7) distribution strips with a total of 700 contact points
- Four (4) Binding Posts
- ABS plastic material
- Black annodized aluminum groundplane integrated into the design (207mm x 235mm x 1.5mm)
- Reusable hundreds of times
- Color coordinates printed on the face for easier component placement
- Spring clips are phosphor bronze nickel plated
- Jumper wires may be from 20 awg to 29 awg
- Up to 300 volts and 5 amps
