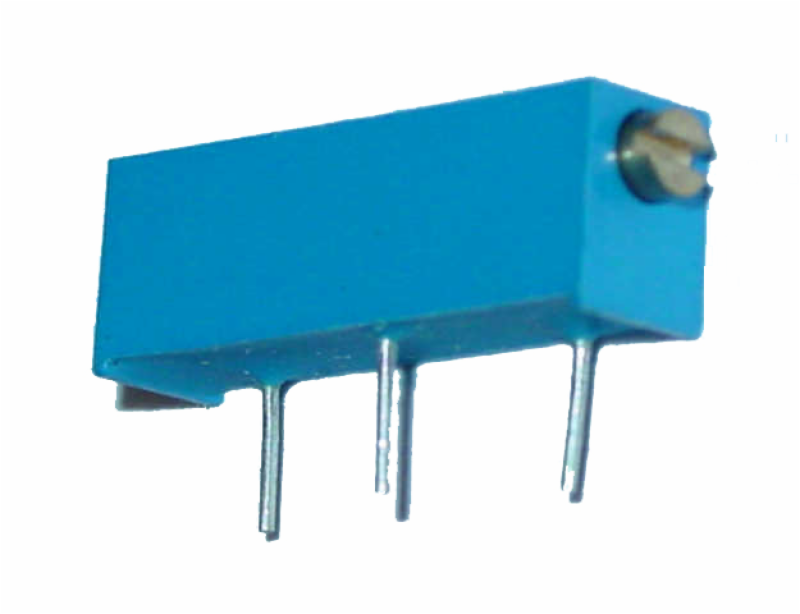

500K ohm Rectangular Multiturn Cermet Sealed Industrial Trimpot
Item #WIW1012-500K
$0.15
Qty
281 in stock
Others also bought...
Overview
Features
- 3/4” Rectangular / Multiturn
- Cermet / Industrial / Sealed
Electrical Characteristics
- Resistance Tolerance: f10% std.
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 3% or 3 ohms max. (whichever is greater)
- Adjustability:
Voltage f0.05%
Resistance f0.15% - Resolution: Infinite
- Insulation Resistance:
500 vdc
1,000 Megohms min. - Dielectric Strength:
101.3 kPa 600 vac
8.5 kPa 350 vac - Adjustment Angle: 22 turns min
Tech Specs
Resistance: 500K OHM
