Out of Stock
12V 1.25A AC-DC Universal Power Supply
Item #3A-161WU12
$8.92
Bulk Pricing Discount
1
$8.92
10 - 24
$7.40
25 - 99
$7.30
100 +
$5.99
Overview

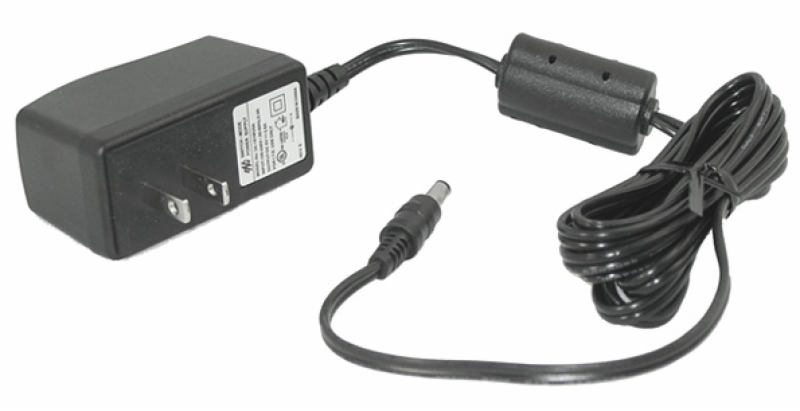

12V 1.25A AC-DC Universal Power Supply
Universal 'Wall Wart' style switching power supply. Slim design with 90° plug angle won't block adjacent outlet on a standard wall outlet.
Features:
- 12V regulated output
- 1.25 Amps
- 15 Watt
- In line EMI/RFI filter
- Universal AC Input 90-264Vac
- Low Ripple Noise
- No minimum load requirement
- 100% burn in test
- Energy efficient switching technology
- 1.8 meter output cord
- Female plug: 5.5 x 2.1mm (Center Positive)
- UL, cUL Approved
Specifications:
- Input:
- Voltage: 90~264V AC
- Frequency: 47~63 Hz
- Current: 600mA
- Leakage Current: 0.25mA
- Start Up Time: <3000mS @ Minimum AC Input
- Rise Time: <100mS
- Hold Up Time: > 20mS @ 230Vac/50Hz input
- Environment:
- Temperature: Operating 0°C~40°C, Storage -10°C~+75°C
- Humidity: Operating 20%~85%, Storage 10%~95% (Non Condensing)
- M.T.B.F: 100K Hours
- Safety: Meets UL 60950, CSA C22.2 No.60950, TUV EN 60950, IEC 60950
- EMC:
- EMI: FCC CFR 47 Part 15 Class B, EN55022, CNS 13438 Class B
- EMS: EN50024
