3 Channel 5 Amp Programmable Bench Power Supply
Overview
3 Channel 5 Amp Programmable Bench Power Supply

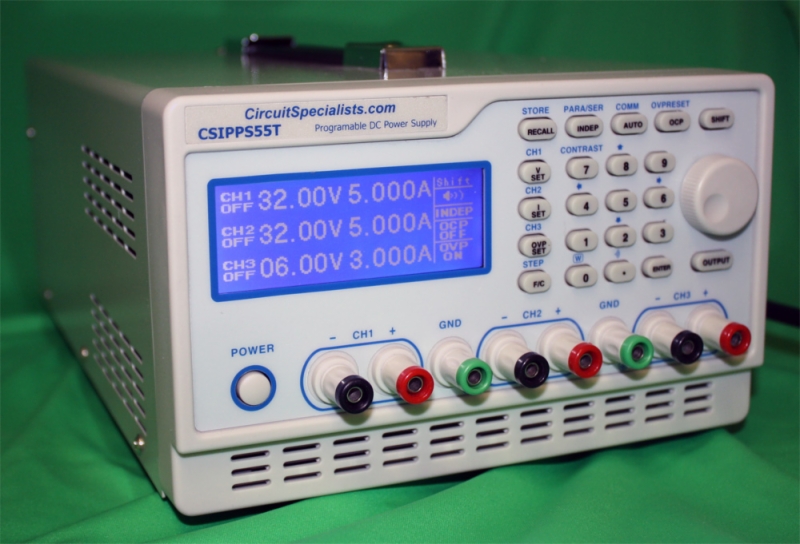

*CSIPPS33T Shown
Check out our CSIPPS55T Programmable, hi performance, economically priced 3-channel, 5 AMP, linear DC bench power supply with built in protection features like OVP, OCP, & OTP to protect the power supply and the attached load from unexpected voltage fluctuation. With RS232 interface, USB interface, Overload protection, Parallel or Serial measurement, Measurement Timer, Automatic fan control, High stability operation. This bench power supply includes two channels with DC outputs of 0-32VDC and a third channel at 0-6 VDC. Programmable sequences can be input directly from the front panel control keypad or via the included RS232/usb software.
BENCH POWER SUPPLY FEATURES
- Full digital programmable interface
- High resolution 10mV , 1mA
- Compact and lightweight package
- Alterable display mode
- Intelligent window interface Facilitate user operation
- Supports multiple immediate buttons
- Automatic parallel function
- High stability, low drift
- Over-voltage, over-current, over temperature protection
- Intelligent fan control (Changes with output power)
- Warning Alert Buzzer
- 100 memory locations

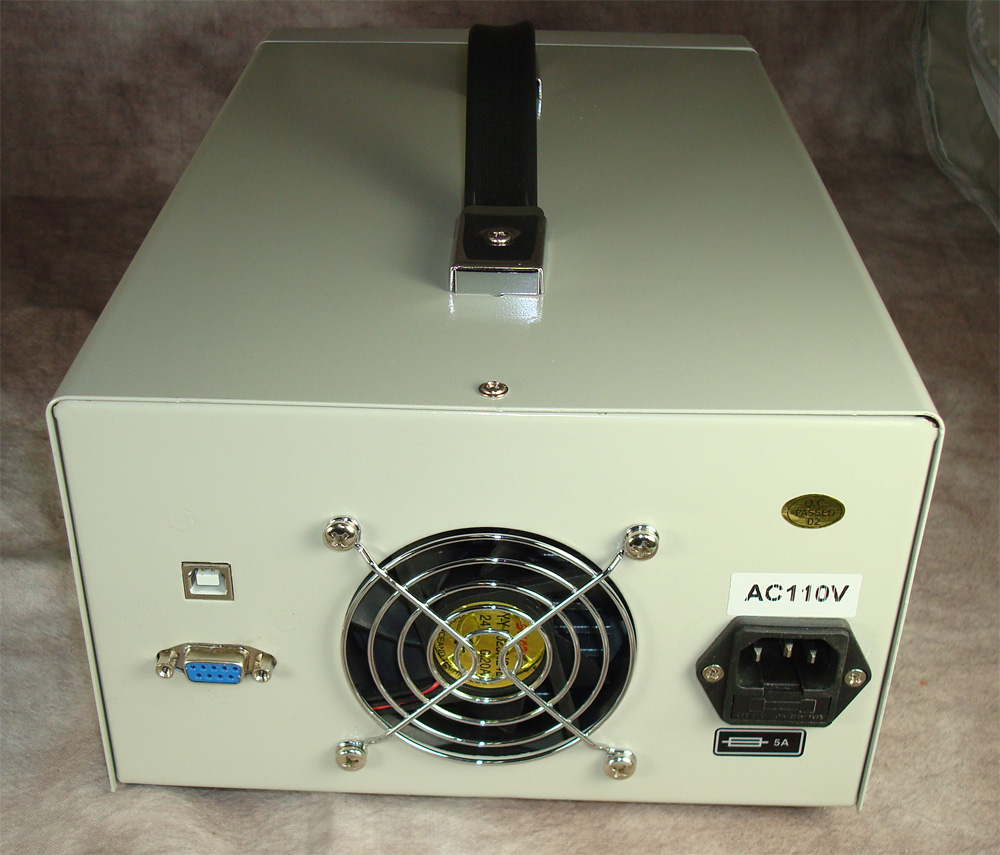

- RS-232 & USB interfaces standard
CSIPPS55T Bench Power Supply Technical Specifications:
- Output:
- Voltage: 0-32V×2 & 0-6V×1
- Current: 0-5A×2 & 0-3A×1
- Load Regulation:
- Voltage: 5mV (10mV when Rate current>3A)
- Current: 3mV (10mA when Rate current>3A)
- Voltage Regulation:
- Voltage: 3mV
- Current: 3mA
- Resolution:
- Voltage: 10mV
- Current: 1mA (2mA when rate current >3A)
- Set Accuracy (25+5°C):
- Voltage: 0.05%+20mV
- Current: .1%+5mA(+10mA when rate voltage >3A)
- Ripple:
- Voltage: ripple 1mVrms (2mVrms when rate voltage>3A)
- Current: 3mArms (5mA Vrms when rate voltage >3A)
- Temperature coefficient (0`10°C):
- Voltage: 100ppm+3mA
- Current: 100ppm+3mA
- Output Resolution:
- Voltage: 10mV
- Current: 1mA (2mA when rate current >3A)
- Time response:
- Voltage rise: 10%-90%≤100ms
- Current down: 90%-10%≤100ms (>30% rate load)
- Read-back temperature coefficient:
- Voltage: 100ppm+10mV
- Current: 50ppm+10mA
- Drift:
- Voltage: 100ppm+10mV
- Current: 150ppm+10mA
- Synchronous Serial Operation:
- Serial Operation Error: 0.1% +20mV
- Load: 20mV
- Synchronous parallel operation:
- Set accuracy
- Voltage: 0.05%+20mV
- Current: 0.1%+10mV
- Load regulation
- Voltage: 30mV (50mV when rate current >3A)
- Current: 6mA
- Voltage regulation:
- Voltage: 3mV
- Current: 6mA
- Memory: Save/recall 0-120 groups of programmed voltage¤t output
- Timer:
- Set time: 1s to 9999s
- Resolution: 1 second
- Function: Auto step Running
- Interface: RS232 Serial & USB interface
